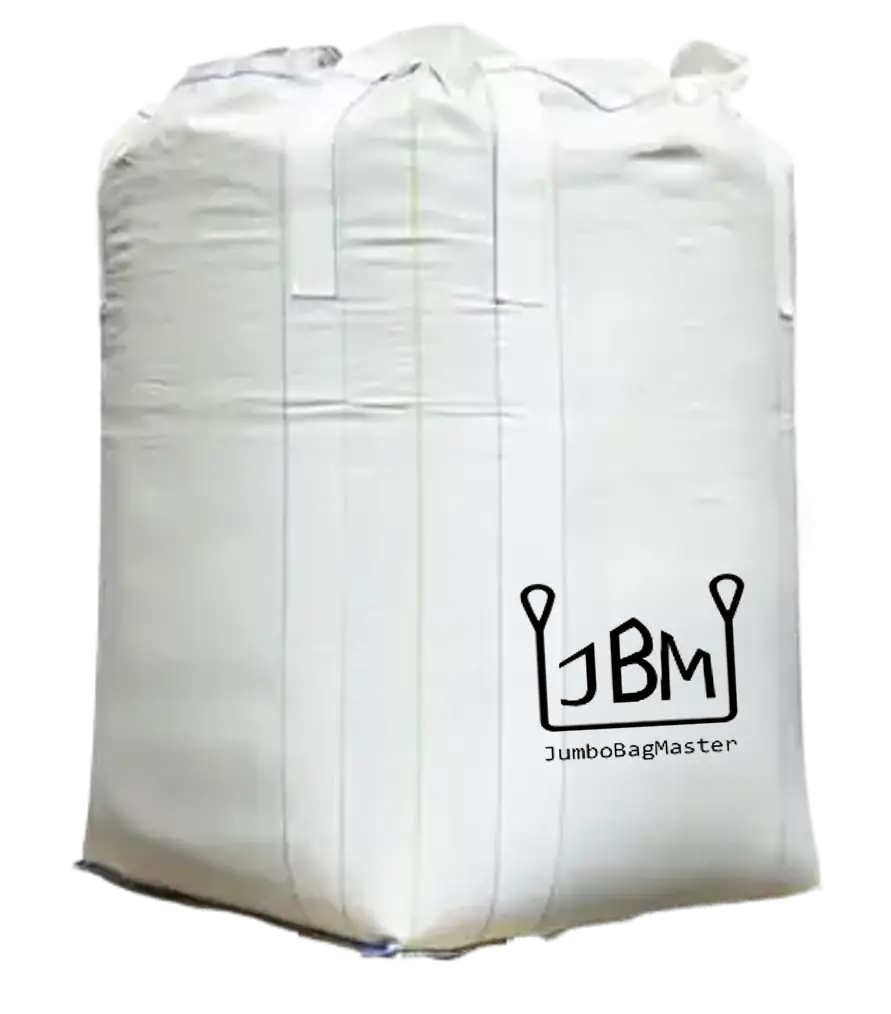

Anti-Static & Conductive Bulk Bags (Type B & C FIBCs)
Our Anti-static & Conductive Bulk Bags
Our anti-static and conductive bulk bags are designed to prevent static buildup, ensuring safe transport and storage of sensitive materials like powders, chemicals, and electronics. Made from high-quality conductive fabrics, they provide reliable protection against static discharge, offering an effective solution for industries requiring static control.
Specifications
| Construction types | 4-Panel / Circular / U-Panel |
| Loop design | Corner Seam Loops / Cross Corner Loops / Tunnel Loops |
| Filling Option | Open Top / Duffle or Top Skirt / Filling Spout / Iris Closure / Star Closure / Conical Top |
| Discharge Options | Flat Bottom / Discharge Spout / Conical Bottom / Discharge Spout with Iris Closure / Discharge Spout with Star Closure / Bottom Flap |
| Capacity | 500-2000kg |
| Safety Factor | 5:1, 6:1 | Lamination | Coated or Non-coated |
| Liner | PE liners optional | UV | UV optional |
Industries served
Type B, C, D
Features
Type B
Made from insulating materials, Type B FIBCs prevent high-energy sparks by limiting breakdown voltage. They reduce ignition risk with flammable powders but are not suitable in environments with combustible gases or vapors.
Type C
The fabric is woven with conductive yarn, forming a fully interconnected grid with a resistance to ground of less than 1.0 x 10^7 Ohms and a breakdown voltage of under 6kV. Conductive tabs are incorporated into the FIBC, enabling safe grounding during filling and discharging. This effective grounding ensures optimal safety and reliability in applications.
Type D
Crafted from antistatic fabric with dissipative threads, Type D FIBCs safely disperse static charges at low energy levels through the corona discharge effect—eliminating the need for grounding.
Safety precautions during filling & discharging of FIBCs
| Type B | Type C | Type D | |
|---|---|---|---|
| Need for FIBC grounding & special handling equipment | No | Yes | No |
| Compliance with EC 10/2011 & FDA food contact regulation | Yes, no limitations on designs | Yes, Coated fabric, liner or net baffle designs | Yes, no limitations on designs |
| Possibility to control the FIBC with metal detection | Yes | No | Yes |
| Dissipation of static charge via Unique built in characteristics | No | No requires grounding | Yes |
The FIBC user, should ensure that isolated conductive objects (e.g. tools, bolts, clips, etc.) should not be stored on, attached to, or even temporarily placed on any type of FIBC during filling and emptying operations. The user should ensure that all conductive objects, including personnel, Type C FIBCs and any conductive contents of the FIBC, within a hazardous explosive atmosphere shall be properly earthed. Type D FIBCs are not considered to be conductive objects and are not required to be earthed. Precautions should be taken to prevent the contamination of any FIBC with substances (e.g. water, rust, oil, grease, etc.) that might create an ignition hazard or impair charge dissipation.
Use of different types of FIBC
| Bulk product in FIBC | Surroundings | ||
|---|---|---|---|
| MIE of Dust | Non-flammable atmosphere | Dust zones 21-22 1000 mJ ≥ MIE > 3 mJ | Gas zones 1-2 (Explosion groups IIA/IIB)Or dust zones 21-22 (MIE ≤ 3 mJ) |
| > 1000 mJ | A, B, C, D | B, C, D | C, D |
| 1 000 mJ ≥ MIE > 3 mJ | 80 packs/min | B, C, D | C, D |
| MIE ≤ 3 mJ | C, D | C, D | C, D |
Source: IEC 61340-4-4 Table 4 – Use of different types of FIBC
FIBCs and different hazard discharge types
- The FIBC construction is designed to exclude incendiary discharges from the fabric surface during their intended use.
- Type B, C & D FIBCs constructed in compliance with the requirements of IEC 61340-4-4 standard, do not necessarily ensure that hazardous electrostatic discharges, e.g. Cone Discharges or Spark Discharges from charged conductive products, will not be generated by the contents in the FIBC.
- The ability to safely use FIBCs in hazardous explosive atmospheres may change if an inner liner is installed in the FIBC. In addition to the separate requirements for FIBC and inner liners, there are requirements that certain combinations of FIBC and inner liner shall meet.
Filling Options
Design your filling options for your Bulk Bag
Open Top
For ease of filling particularly bulky products
Duffle / Top Skirt
Offers full width of fill with additional protection
Filling Spout
For Standard filling applications
Iris Closure
For additional protection after filling
Star Closure
Additional protection with flap cover
Conical Top
For products with a high filling cone
Discharge Options
Design your filling options for your Bulk Bag
Flat Bottom
Emptying by star cut of base
Discharge spout
For standard discharging applications
Conical Bottom
For products which may bridge or cake
Discharge Spout with Iris Closure
Emptying by star cut of base
Discharge Spout with Star Closure
Emptying by star cut of base
Bottom Flap
Additional full base protection
Single Trip FIBCs
Designed for one-time use and a single fill, these bags can be handled multiple times but are not intended for re-use and are tested to a 5:1 safety factor.
Multi-Trip (Standard Duty Reusable)
FIBCs that are engineered for multiple uses, these bags require careful inspection before each refill to ensure they remain undamaged, as they cannot be structurally repaired. Removable inner liners may be replaced as needed. Multi-Trip FIBCs are certified with a 6:1 safety factor for reliable performance.
Safety Factor (SF)
According to ISO 21898:2004, our FIBCs are engineered to safely handle loads from 250 kg to 3000 kg.
UV
Our FIBCs can be enhanced with UV stabilizers for added durability in outdoor conditions.
